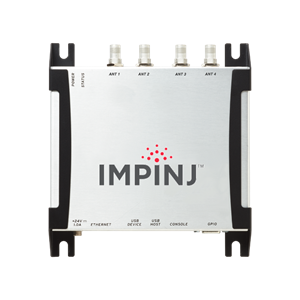

Impinj Speedway R420 UHF RFID Reader

Product Overview
Impinj Speedway R420 - 4 Port - UHF RFID Reader
*
*
*
$1,585.00

Impinj Speedway RFID Readers

Impinj’s Speedway fixed RFID readers deliver the performance, quality and reliability that is necessary to ensure visibility for your business. With the largest installed base of fixed readers across a diverse range of applications, high mean time between failure, and a suite of supporting products and tools, you can count on Speedway readers gathering the data you need.

Impinj Speedway readers are enterprise-class fixed readers with the performance, quality, and reliability necessary for maximum endpoint visibility.

Speedway Benefits

Versatile and Customizable

    Provides low-cost opportunity to create a large, contiguous read zone with many antennas connected to a single reader.

Maximum Performance 24/7

    Maintain high read rates regardless of RF noise or interference leveraging patented AutoPilot capability that automatically optimizes performance.

Powerful Application Development Tools

    Suite of hardware and software tools enable custom solution development.

Key Features

Senses and Adapts to Environment

    Impinj Autopilot technology automatically optimizes the reader's operation for its environment.

Flexible, Design-Specific Solutions

    Handles high trac volumes, RF-challenging environments and a wide variety of RAIN RFID-tagged products.

Platform Ready

    Leverage the RFID Revolution Middleware Platform for large-scale data aggregation and device management.

Use Cases

Inventory Management

    Ensure supplies are always in stock, get accurate information about the availability and consumption of materials, and manage inventory with lower cost through efficient utilization and expiration management.

Asset Tracking

    Easily track returnable, reusable assets for reduced errors and increased efficiency.

Authentication

    Track and authenticate items through the supply chain.
Products specifications
Use Case Optimized for 4 read zones, Expandable to 32 read zones
Antenna Ports Four Antenna Ports
Throughput Up to 1,100 Tag Reads per Second
Read Zones ( Maximum ) 32 with Antenna Hubs
Air Interface Protocol RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Transmit Power ( Maximum )
  • FCC: 32.5 dBm AC/ 31.5 dBm
  • PoE ETSI: 31.5 dBm AC/ 30.0 dBm PoE
Receive Sensitivity ( Maximum ) -84 dBm
Return Loss ( Minimum ) 10 dB
Reliability Enterprise Grade
Network Connectivity 10/100BASE-T Ethernet
GPIO 4 Optically Isolated Inputs and 4 Optically Isolated Outputs
USB Ports 1 device (Type B), 1 host (Type A)
Management Console Port RS-232 using a standard Cisco-style management cable (DB-9 to RJ-45)
Power Sources 802.3af PoE or AC-DC power supply rated for 24Vdc/2.1A
Environmental Sealing IEC IP52
Shock and Vibration MIL-STD-810G
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Humidity Range 5% to 95% non-condensing
Dimensions (H x W x D) 7.5 x 6.9 x 1.2 in (19 x 17.5 x 3 cm)
Weight 1.5 lb (.7 kg)
RoHS Compliant Yes
Warranty and Maintenance Options 1 year limited warranty with purchase, option to extend 3 year Enhanced Maintenance upgrade available
Frequency Bands
  • 902 to 928 MHz - FCC
  • 865 to 868 MHz - ETSI
Software
  • RFID Revolution Express
  • RFID Starter Tool
  • Multi-Reader
  • Speedway Connect
  • Speedway SDK, ETK and LTK library support
RF Certifications http://www.impinj.com/supported_regions
Part #s IPJ-REV-R420-USA2M1, IPJ-REV-R420-EU12M1, IPJ-REV-R420-GX12M1, IPJ-REV-R420-GX22M1, IPJ-REV-R420-GX32M1, IPJ-REV-R420-JP22M1
Product Description

Impinj Speedway RFID Readers

Impinj’s Speedway fixed RFID readers deliver the performance, quality and reliability that is necessary to ensure visibility for your business. With the largest installed base of fixed readers across a diverse range of applications, high mean time between failure, and a suite of supporting products and tools, you can count on Speedway readers gathering the data you need.

Impinj Speedway readers are enterprise-class fixed readers with the performance, quality, and reliability necessary for maximum endpoint visibility.

Speedway Benefits

Versatile and Customizable

    Provides low-cost opportunity to create a large, contiguous read zone with many antennas connected to a single reader.

Maximum Performance 24/7

    Maintain high read rates regardless of RF noise or interference leveraging patented AutoPilot capability that automatically optimizes performance.

Powerful Application Development Tools

    Suite of hardware and software tools enable custom solution development.

Key Features

Senses and Adapts to Environment

    Impinj Autopilot technology automatically optimizes the reader's operation for its environment.

Flexible, Design-Specific Solutions

    Handles high trac volumes, RF-challenging environments and a wide variety of RAIN RFID-tagged products.

Platform Ready

    Leverage the RFID Revolution Middleware Platform for large-scale data aggregation and device management.

Use Cases

Inventory Management

    Ensure supplies are always in stock, get accurate information about the availability and consumption of materials, and manage inventory with lower cost through efficient utilization and expiration management.

Asset Tracking

    Easily track returnable, reusable assets for reduced errors and increased efficiency.

Authentication

    Track and authenticate items through the supply chain.
Additional information
Manufacturer: Impinj
Products specifications
Use Case Optimized for 4 read zones, Expandable to 32 read zones
Antenna Ports Four Antenna Ports
Throughput Up to 1,100 Tag Reads per Second
Read Zones ( Maximum ) 32 with Antenna Hubs
Air Interface Protocol RAIN RFID / UHF Gen 2 ( ISO 18000-63 ) / GS1
Transmit Power ( Maximum )
  • FCC: 32.5 dBm AC/ 31.5 dBm
  • PoE ETSI: 31.5 dBm AC/ 30.0 dBm PoE
Receive Sensitivity ( Maximum ) -84 dBm
Return Loss ( Minimum ) 10 dB
Reliability Enterprise Grade
Network Connectivity 10/100BASE-T Ethernet
GPIO 4 Optically Isolated Inputs and 4 Optically Isolated Outputs
USB Ports 1 device (Type B), 1 host (Type A)
Management Console Port RS-232 using a standard Cisco-style management cable (DB-9 to RJ-45)
Power Sources 802.3af PoE or AC-DC power supply rated for 24Vdc/2.1A
Environmental Sealing IEC IP52
Shock and Vibration MIL-STD-810G
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Humidity Range 5% to 95% non-condensing
Dimensions (H x W x D) 7.5 x 6.9 x 1.2 in (19 x 17.5 x 3 cm)
Weight 1.5 lb (.7 kg)
RoHS Compliant Yes
Warranty and Maintenance Options 1 year limited warranty with purchase, option to extend 3 year Enhanced Maintenance upgrade available
Frequency Bands
  • 902 to 928 MHz - FCC
  • 865 to 868 MHz - ETSI
Software
  • RFID Revolution Express
  • RFID Starter Tool
  • Multi-Reader
  • Speedway Connect
  • Speedway SDK, ETK and LTK library support
RF Certifications http://www.impinj.com/supported_regions
Part #s IPJ-REV-R420-USA2M1, IPJ-REV-R420-EU12M1, IPJ-REV-R420-GX12M1, IPJ-REV-R420-GX22M1, IPJ-REV-R420-GX32M1, IPJ-REV-R420-JP22M1
