Circular Polarized 10x10 UHF RFID Far Field Antenna Kit

Product Overview

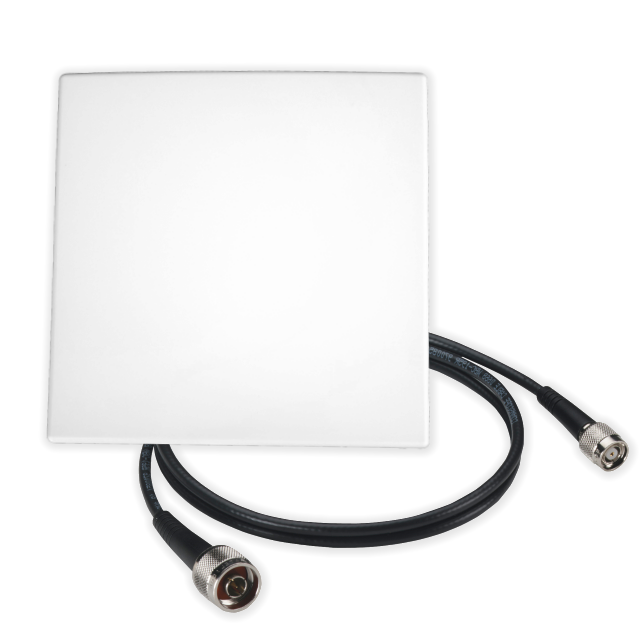

Circular Polarized 10x10 Indoor / Outdoor UHF RFID Far Field Antenna kit, includes Antenna and 10 ft / 3m antenna cable. Wall and Pole mount option available.
*
*
*
$139.00

Circular Polarized 10x10 UHF RFID Far Field Antenna Kit

Circular Polarized 10x10 Indoor / Outdoor UHF RFID Far Field Antenna kit, includes RFID antenna and 10 ft / 3m antenna cable.  Wall and Pole mount option available.

Products specifications
Frequency Band FCC (902 to 928 Mhz)
Polarization Circular
Gain 9±0.5 dBi
Maximum VSWR 1.5:1
Horizontal Beam Width 63°
Vertial Beam Width 63°
Front to Back Ratio ≥ 20 dB
Input Impedence 50 Ohms
Lightning Protection DC Grounded
Connector N Female
Radiating Element Material Aluminum
Reflector Material Aluminum
Radome UABS
Color White
Mounting Pole Mount
Mounting Pole 30mm to 55mm
Operating Temperature -40ºC to 60ºC
Rated Wind Velocity 200 km/h
Dimensions (H x W x D) 9.8 x 9.8 x 1 in / 250 x 250 x 25 mm
Weight 0.9 kgs
Product Description

Circular Polarized 10x10 UHF RFID Far Field Antenna Kit

Circular Polarized 10x10 Indoor / Outdoor UHF RFID Far Field Antenna kit, includes RFID antenna and 10 ft / 3m antenna cable.  Wall and Pole mount option available.

Additional information
Manufacturer: RFID Solutions
Products specifications
Frequency Band FCC (902 to 928 Mhz)
Polarization Circular
Gain 9±0.5 dBi
Maximum VSWR 1.5:1
Horizontal Beam Width 63°
Vertial Beam Width 63°
Front to Back Ratio ≥ 20 dB
Input Impedence 50 Ohms
Lightning Protection DC Grounded
Connector N Female
Radiating Element Material Aluminum
Reflector Material Aluminum
Radome UABS
Color White
Mounting Pole Mount
Mounting Pole 30mm to 55mm
Operating Temperature -40ºC to 60ºC
Rated Wind Velocity 200 km/h
Dimensions (H x W x D) 9.8 x 9.8 x 1 in / 250 x 250 x 25 mm
Weight 0.9 kgs
