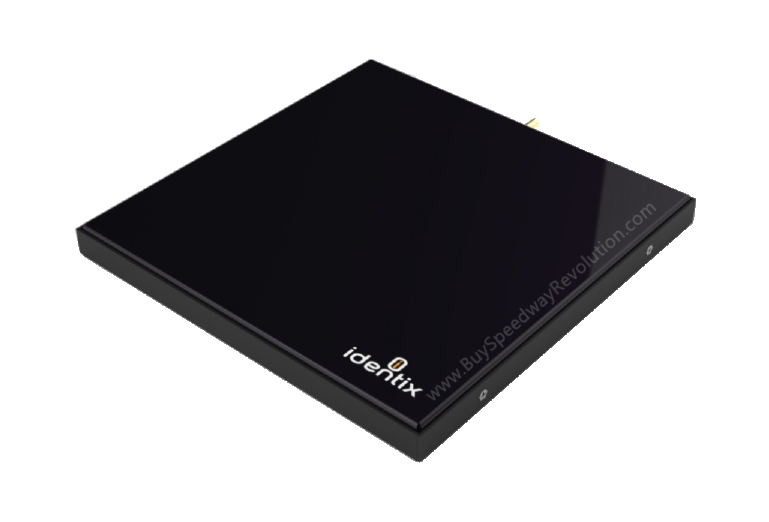

Identix Short Range UHF RFID Antenna

Product Overview
Identix Short Range UHF RFID Antenna designed for close proximity RFID Applications.
$165.00

The Identix ANTNF0 Near Field UHF RFID Antenna

Ideally designed for applications that require a short to mid-range read distance the Identix Short Range antenna delivers a strong and uniform reading field along its entire surface.

The Identix Short Range antenna is recommended to read traditionally complex items such as documents, books, clothing, and others. The uniformity of the read field covering the entire surface of the antenna, make the Identix short range antenna the ideal device for RFID applications in Point of Sale and Kiosks, guaranteeing the reading of items placed on its surface.

Its modern, compact and light design make it ideal for use in retail, healthcare and other type of industries.

Applications

  • Point of Sale
  • Kiosks
  • Pharmacy
  • Hospitals
  • Documents Tracking

The Identix ANTNF0 Near Field Antenna at a glance

  • Operating frequency: 900-930MHz
  • Near field intensity: -6.6 dBA/m @2.5cm (max)
  • Far field gain: -5.5 dBi (tip)
  • VSWR: < 4:1 across all frequency bands
  • Maximum input power: 2W
  • Connector: SMA female
Products specifications
Operating Frequency 900 to 930 Mhz
Input Impedence 50 Ohms
Near Field Intensity -6.6 dBA/m @ 2.5 cm
Far Field Gain -5.5 dBi (tip)
Maximum VSWR < 1.4:1
Maximum Input Power 2 Watts
Connector SMA Female
Ingress Protection IP 54
Base Painted Aluminum
Radome PETG Plastic 1.5 mm thick
Dimensions (H x W x D) 7.7 x 7.7 x .55 in / 196 x 196 x 14 mm
Weight 300g / 10.6 oz
Product Description

The Identix ANTNF0 Near Field UHF RFID Antenna

Ideally designed for applications that require a short to mid-range read distance the Identix Short Range antenna delivers a strong and uniform reading field along its entire surface.

The Identix Short Range antenna is recommended to read traditionally complex items such as documents, books, clothing, and others. The uniformity of the read field covering the entire surface of the antenna, make the Identix short range antenna the ideal device for RFID applications in Point of Sale and Kiosks, guaranteeing the reading of items placed on its surface.

Its modern, compact and light design make it ideal for use in retail, healthcare and other type of industries.

Applications

  • Point of Sale
  • Kiosks
  • Pharmacy
  • Hospitals
  • Documents Tracking

The Identix ANTNF0 Near Field Antenna at a glance

  • Operating frequency: 900-930MHz
  • Near field intensity: -6.6 dBA/m @2.5cm (max)
  • Far field gain: -5.5 dBi (tip)
  • VSWR: < 4:1 across all frequency bands
  • Maximum input power: 2W
  • Connector: SMA female
Additional information
Manufacturer: Identix
Products specifications
Operating Frequency 900 to 930 Mhz
Input Impedence 50 Ohms
Near Field Intensity -6.6 dBA/m @ 2.5 cm
Far Field Gain -5.5 dBi (tip)
Maximum VSWR < 1.4:1
Maximum Input Power 2 Watts
Connector SMA Female
Ingress Protection IP 54
Base Painted Aluminum
Radome PETG Plastic 1.5 mm thick
Dimensions (H x W x D) 7.7 x 7.7 x .55 in / 196 x 196 x 14 mm
Weight 300g / 10.6 oz
